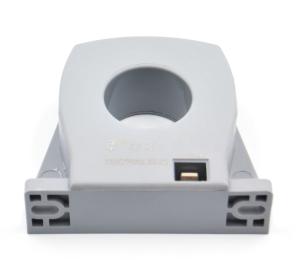

High Accuracy Hall Effect Dc Current Sensor TBC-LTHC Series Custom
The TBC-LTHC Series current sensor is a closed loop device based on the measuring principle of the hall effect and null balance method , with a galvanic isolation between primary and secondary circuit, the size of primary doesn’t affect test precision, no matter the location of primary in the hole of current sensor, It can really measure resolution 1000:1 and uses for precision measurement of DC, AC and pulse current.
| Electrical data(Ta=25℃±5℃) |
| Type
Parameter
| TBC100LTHC | TBC200LTHC | TBC300LTHC | Unit |
Rated current(Ipn) | 100 | 200 | 300 | A |
Measure range(Ip) | 300(±18V,15Ω) | 600(±18V,15Ω) | 900(±18V,3Ω) | A |
Turns ratio(Np/Ns) | 1:1000 | 1:2000 | 1:2000 | |
|
Measure resister
with ±12V | @±100Amax 91(max) | @±200Amax 100(max) | @±300Amax 62(max) | Ω |
| @±300Amax 3.0(max) | @±600Amax 12(max) | @±750Amax 3.0(max) | Ω |
| Rated output (Isn) | ±100±0.2% | ±100±0.2% | ±150±0.2% | mA |
| Supply voltage | ±12～±18 | V |
| Power consumption | ≤24+Ip(Np/Ns) | mA |
| Offset current | @Ip=0 ≤±0.2 | mA |
| Offset drift | @ -40℃～85℃ ≤±0.5 | mA |
Response time | @100A/μS,10%-90% ＜1.0 | µs |
| Linearity | @Ip=0-±Ipn ≤0.1 | %FS |
Galvanic isolation | @ 50HZ,AC,1min 6 | KV |
| di/dt | ＞100 | A/µs |
| Bandwidth | @ -3db DC…150 | KHz |
Variable speed drives
Welding machine
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Electrochemical
Frequency converter
| Mechanical dimension(for reference only) |
Remarks:
1. All dimensions are in mm.
2. General tolerance ±1mm
Is will be in a forward direction when the Ip flows according to the direction of the arrowhead.
The primary conductor should be≤120℃.
The dynamic performance (di/dt and the response time) is the best when the primary hole is fully filled with the bus bar.
- UL94-V0.
- EN60947-1:2004
- IEC60950-1:2001
- EN50178:1998
- SJ 20790-2000
| | Value | Unit | Symbol |
| Operating temperature | -40 to +85 | ºC | TA |
| Storage temperature | -40 to +125 | ºC | TS |
| Mass(approx) | 100 | g | M |
Pulse current signal response characteristic Effects of impulse noise
